FHIR R4 (Fast Healthcare Interoperability Resources, Release 4) is the current regulatory baseline for healthcare interoperability in the U.S. This guide covers the core FHIR R4 resources, including Patient, Practitioner, Medication, Organization, and Appointment.
TLDR:
FHIR R4 is HL7's 2019 update to the FHIR standard. It serves as the current normative baseline for health data exchange, defining how clinical and administrative information gets structured, queried, and shared across systems using a REST-based API approach.
R4 introduced the first normative content in FHIR's history, meaning certain core resources, like Patient and Observation, became stable enough that teams could build implementation commitments against them.
The ONC 21st Century Cures Act Final Rule and the CMS Interoperability and Patient Access Final Rule (CMS-9115-F) established FHIR R4 as the foundation for federally required interoperability APIs, accelerating health data exchange across the industry.
Resources are the core building blocks of FHIR R4. Every piece of clinical or administrative data maps to a typed resource, and HL7 organizes all of them into seven functional categories.
| Category | Example Resources |
|---|---|
| Foundation | CapabilityStatement, OperationOutcome, Bundle |
| Administration | Patient, Practitioner, Organization, Encounter |
| Clinical | Condition, Observation, AllergyIntolerance, Procedure |
| Diagnostic | DiagnosticReport, ImagingStudy, Specimen |
| Medications | Medication, MedicationRequest, MedicationStatement |
| Financial | Coverage, Claim, ExplanationOfBenefit |
| Workflow | Task, Appointment, ServiceRequest, Communication |
These categories are not rigid silos. A Condition resource lives in Clinical, but a ServiceRequest referencing that condition sits in Workflow.
These four resources form the identity layer that everything else in FHIR R4 points back to.

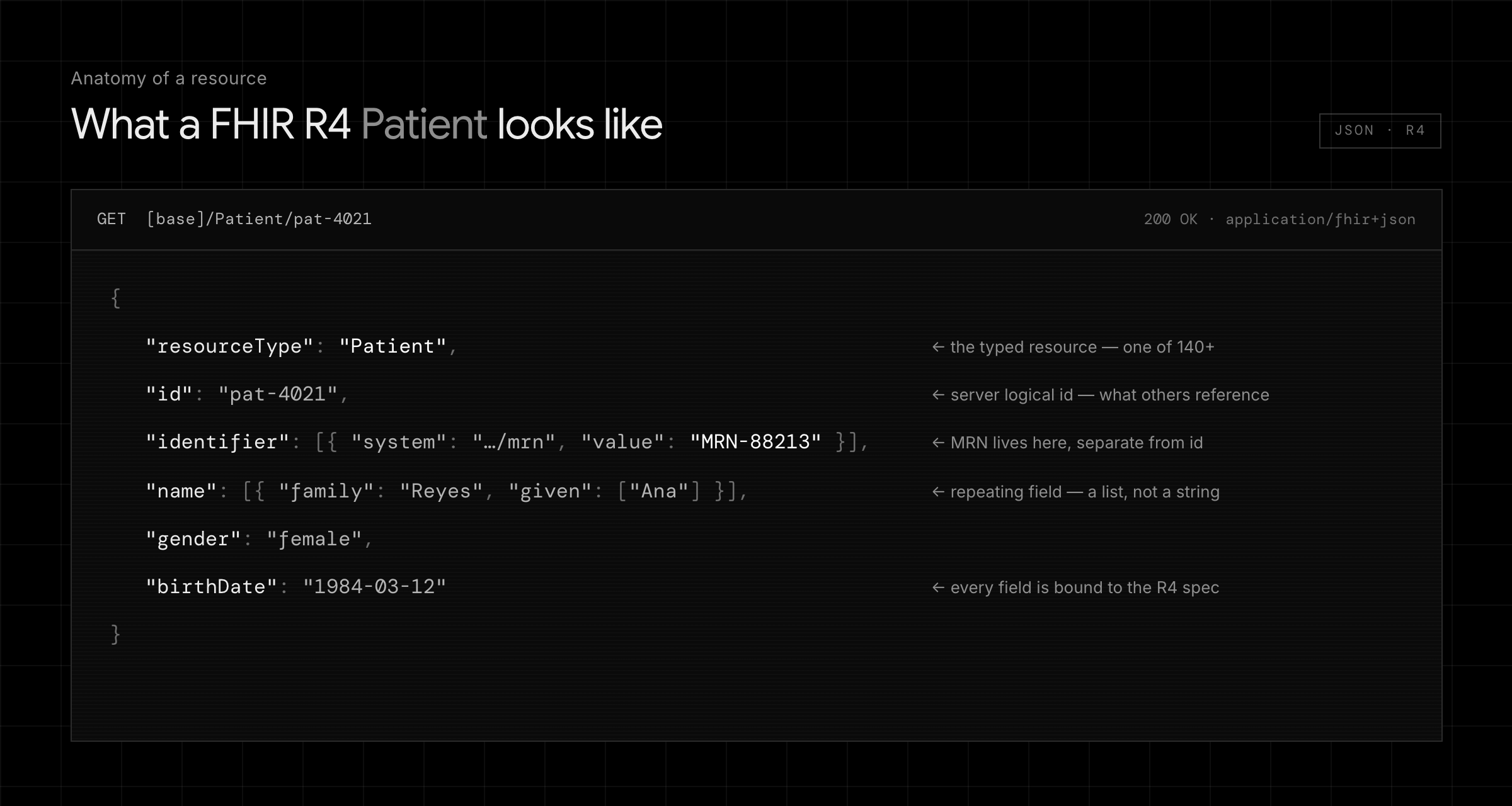

Patient: carries demographic and identity data, including name, date of birth, gender, address, and identifiers like MRN. Nearly every clinical resource links back to the patient by referencing this resource's ID, separate from identifiers like MRN.Practitioner: represents an individual provider, with fields for name, identifiers (such as NPI), and qualifications. Referenced by Encounter, Observation, DiagnosticReport, and others.Organization: describes a healthcare entity, such as a hospital or clinic, with type, address, and organizational identifiers. Practitioners are linked to organizations via PractitionerRole.RelatedPerson: captures someone with a personal relationship to the patient, like a guardian or spouse. Used when that person participates in care or serves as an emergency contact.PractitionerRole is a join resource that connects a Practitioner to an Organization with a specific role and specialty. It's a good example of interoperability in healthcare because it standardizes how provider affiliations are represented across systems.
These form the clinical data layer in most FHIR R4 implementations.
Condition represents a diagnosis or clinical problem, coded in SNOMED CT or ICD-10. Key fields include clinicalStatus (active, resolved, inactive), verificationStatus (confirmed, unconfirmed, refuted), onset date, and a patient reference. Problem lists and encounter reason fields both draw from this resource.Observation handles point-in-time measurements: lab results, vital signs, social history responses, and clinical scores. Each instance carries a code, a value (numeric, string, or coded), and a status.DiagnosticReport groups related Observation resources into a structured report. A metabolic panel becomes one DiagnosticReport referencing each individual result as its own Observation resource.The Observation-to-DiagnosticReport relationship is where modeling decisions matter most. Observation resources can stand alone for something like a blood pressure reading, but a panel or imaging study belongs inside a DiagnosticReport so the clinical context is preserved.
The Encounter resource tracks every interaction between a patient and the healthcare system, whether that's an office visit, emergency department stay, telehealth call, or inpatient admission. Each Encounter record captures status, class, type, subject, participant, period, and reason, giving downstream systems a structured account of what occurred, when, and who was involved.
Encounter status values include planned, arrived, in-progress, finished, and cancelled.
These resources cover the moving pieces of a care workflow, from scheduling through follow-up.
Appointment: a scheduled time slot for an upcoming patient-provider interaction, which can be cancelled or rescheduled.ServiceRequest: an order or referral triggering a downstream clinical action, such as a lab test, imaging study, or specialist consultation, referencing the requesting practitioner, patient, and coded service.Task: a general-purpose work item assigned to a person, team, or system, for anything from reviewing a result to coordinating steps in a care workflow. Each Task tracks its own status, owner, and priority.Communication: records a message or notification passed between parties, such as a care team alert or patient outreach. Unlike a Task, it documents what was communicated, not what work to assign.These resource types handle documentation, financial coverage, and clinical procedures in FHIR R4.
DocumentReference describes an existing clinical document, such as a C-CDA, PDF, or scanned record, storing metadata like document type, author, and a URL or base64-encoded content. Coverage captures insurance details, including payer, subscriber, and benefit period. Procedure records actions performed on or for a patient, such as surgeries or counseling sessions, and supports both completed and in-progress statuses.
The Bundle resource wraps multiple FHIR resources into a single HTTP payload. R4 defines several bundle types, and the ones you'll most commonly work with are:
transaction bundles are atomic, meaning all entries succeed or none do, making them useful for writes that must stay consistent.batch bundles process each entry independently, so one failure does not block the rest.document bundles represent a clinical document anchored by a Composition resource. It's worth comparing this format with C-CDA (see C-CDA vs FHIR differences).message bundles support event-driven exchange and always begin with a MessageHeader.collection bundles group resources without implying any processing behavior.Each entry carries a resource object and a request field specifying the HTTP verb and target URL. When a server needs to report an error, warning, or informational response, it returns an OperationOutcome resource containing coded issue entries that describe exactly what happened.
FHIR R4 uses REST as its primary interaction model, though the spec also supports Messaging and Document exchange. Resources are exchanged over HTTP using standard methods: GET for retrieval, POST for creation, PUT for updates, and DELETE, when supported. (For a deeper look, see how FHIR APIs work.)
Supported formats include JSON and XML, with JSON being the more widely adopted choice in modern implementations. Every request and response carries a Content-Type header specifying application/fhir+json or application/fhir+xml.
Profiles narrow base FHIR R4 resources for specific use cases, extending elements or restricting cardinality to fit real-world needs. Implementation guides package these profiles with examples, terminology bindings, and usage rules into a deployable specification.
The US Core Implementation Guide is the most widely adopted profile set in the US, built on FHIR R4 and required for ONC certification (currently US Core 6.1.0 for new certifications under HTI-1 and USCDI v3; the applicable version depends on the certification edition). Teams that need to query this data downstream often rely on FHIR conversions for analytics. Validation tools like the official HL7 FHIR validator check resources against both base specs and custom profiles.
R4B, a targeted patch release published in May 2022, fixed specific issues in resources like Citation and Evidence but saw limited adoption. R5 followed in March 2023, though production uptake remained limited. US federal interoperability rules are written against R4, including CMS-0057-F (2024), which mandates FHIR R4-based APIs for prior authorization and payer-to-payer exchange, giving compliance-driven teams little practical reason to migrate. Many organizations plan to skip R5 entirely and move directly from R4 to R6 once it finalizes. For any system subject to ONC or CMS rules today, R4 remains the safe compliance choice. Teams building outside those mandates may evaluate R5 or early R6 drafts.
The official FHIR R4 specification package is available at hl7.org/fhir/R4, where you can download the full spec as a ZIP archive containing definitions, schemas, examples, and validator tooling.
For development, two open-source libraries dominate:
Both let you spin up a local FHIR R4 server in minutes, so you can test resource creation and search queries without a production endpoint.
Terminology lookups can be handled with an open-source healthcare terminology server. Two more resources worth knowing early: Questionnaire, which defines a structured form or survey, and QuestionnaireResponse, which captures a patient's answers. Both appear in patient-reported outcome tools and intake workflows, and neither requires a custom profile.
Learning FHIR R4's resource model pays off quickly. Once you see how Patient ties to Encounter, how Observation feeds into DiagnosticReport, and how Bundle wraps it all for transport, the rest of the spec is easier to navigate.
FHIR R4 is HL7's Fast Healthcare Interoperability Resources standard, published in 2019. It introduced normative content, meaning core resources like Patient, Observation, and Bundle had their structure locked in, with HL7 guaranteeing backward compatibility.
US healthcare systems still use R4 because federal interoperability rules from ONC and CMS are written against it, and those rules predate R5, which arrived in 2023 with limited vendor adoption. HL7 has since decided to skip R5 for US regulatory purposes and build the next version of US Core directly on R6, so future rules are expected to target R6 once it publishes.
An Appointment represents a scheduled interaction before the visit occurs and can be cancelled or rescheduled, while an Encounter is created once the patient arrives and the interaction begins. The Encounter resource captures status, class, period, participants, and reason, giving downstream systems a structured record of what happened, when, and who was involved.
Use a transaction bundle when all writes must succeed together: it processes entries atomically, so one failure rolls back the entire operation. Use a batch bundle when entries are independent and a single failure should not block the rest from processing.
Send a GET request to your FHIR R4 endpoint at [base]/Patient? with search parameters like family, birthdate, identifier, or gender. The server returns a Bundle of type searchset containing matching Patient resources, and any errors or warnings come back as an OperationOutcome with coded issue entries describing what went wrong.
